PNP supports several modes to process performance data. The modes differ in complexity and the performance to be expected.

The following image shows the connections between Nagios, PNP and RRDtool

Nagios invokes a command for every host and every service whose performance data should be processed. Depending on the mode you choose the data will be passed to process_perfdata.pl or will be written to temporary files and processed at a later time. process_perfdata.pl writes the data to XML files and stores them in RRD files using RRDtool.

Before you choose a mode please read the documentation and decide which way will be the best for installation.

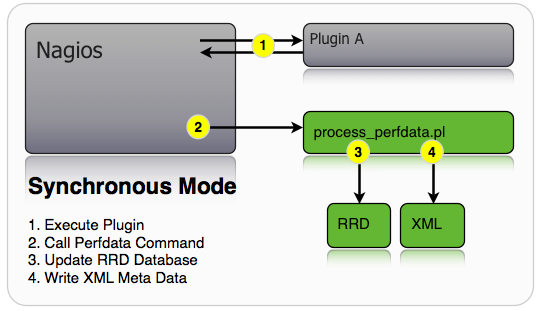

The “synchronous mode” is the simplest and easiest to set up. Nagios will call the perl script process_perfdata.pl for every service and host, respectively, to process the data. The synchronous mode will work very good up to about 1.000 services in a 5 minute interval.

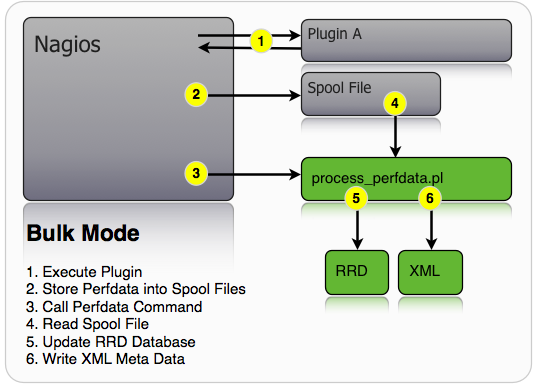

In bulk mode Nagios writes the necessary data to a temporary file. After expiration of a defined time the file will be processed in one piece and deleted afterwards.

The number of calls of process_perfdata.pl will be reduced to a fraction. Depending on time and the amount of collected data there will be much less system calls. Instead, process_perfdata.pl will run longer.

Note Using this mode you should keep an eye on the runtime of process_perfdata.pl. While it is running to process data nagios will not execute any checks.

snippet of var/perfdata.log:

2007-10-18 12:05:01 [21138] 71 Lines processed
2007-10-18 12:05:01 [21138] .../spool/service-perfdata-1192701894-PID-21138 deleted
2007-10-18 12:05:01 [21138] PNP exiting (runtime 0.060969s) ...

71 lines were processed in 0.06 seconds. This will be the data volume of about 2000 services und processing using a 10 second interval. It means we blocked nagios for exactly 0.06 seconds.

Viewing from Nagios this is the best way of processing because Nagios will not be blocked.

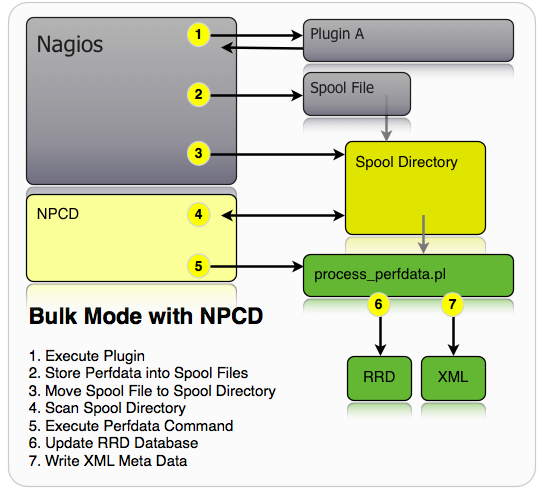

Nagios again uses a temporary file to store the data and executes a command after expiration of a certain time. Instead of immediate processing by process_perfdata.pl the file is moved to a spool directory. As moving a file inside the same filesystem nearly takes no time nagios is able to execute crucial work immediately.

The NPCD daemon (Nagios Performance C Daemon) will monitor the directory for new files and will pass the names to process_perfdata.pl. Processing of performance data is decoupled completely from nagios. NPCD itself is able to start multiple thread for processing the data.

Attention Starting with Nagios 4 the internal structures have changed so the start of the module will fail. So far there are no plans to support Nagios 4. Please select any other of the modes.

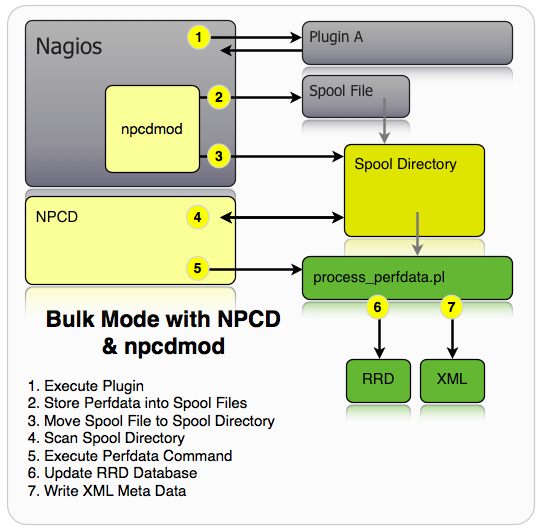

This scenario includes npcdmod.o, an NEB-module. This module reduces the configuration of the “Bulk Mode with NPCD” to a mere two lines in nagios.cfg

This mode is similar to “Bulk Mode with NPCD” and it is exactly the same functionality and the same performance.

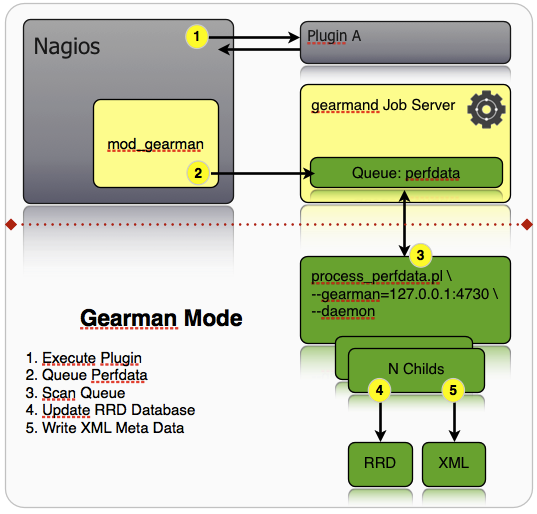

Since version 0.6.12 PNP4Nagios can be driven as a gearman worker. This way large Nagios environments are possible using mod_gearman. Nagios and PNP4Nagios can be run on different machines.

You need a mod_gearman environment up and running like described by Sven Nierlein on http://labs.consol.de/lang/en/nagios/mod-gearman/.

Which mode you choose will depend on the size of your Nagios installation. You will find theses terms throughout the documentation.
